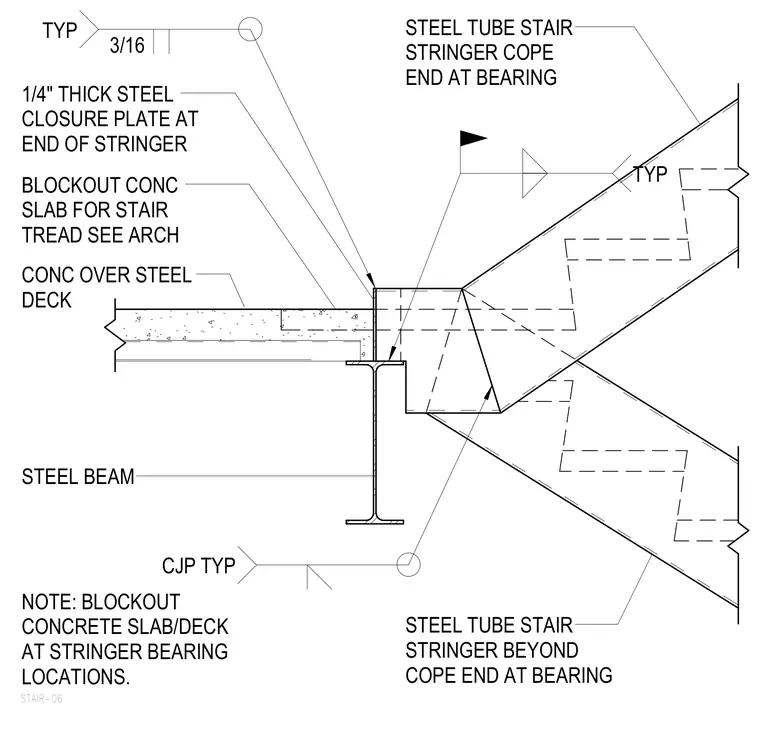

A steel tube stair stringer lands on a supporting steel beam with a coped end at the bearing location. A one-quarter-inch-thick steel closure plate caps the end of the stringer, joined with typical complete joint penetration and fillet welds. The concrete slab and metal deck feature a blockout at the stringer bearing location to accommodate stair tread installation.
STEEL BEAM STEEL TUBE STAIR STRINGER COPE END AT BEARING STEEL TUBE STAIR STRINGER BEYOND COPE END AT BEARING NOTE: BLOCKOUT CONCRETE SLAB/DECK AT STRINGER BEARING LOCATIONS. CONC OVER STEEL DECK 1/4" THICK STEEL CLOSURE PLATE AT END OF STRINGER BLOCKOUT CONC SLAB FOR STAIR TREAD SEE ARCH STAIR-06 3/16 TYP CJP TYP TYP
