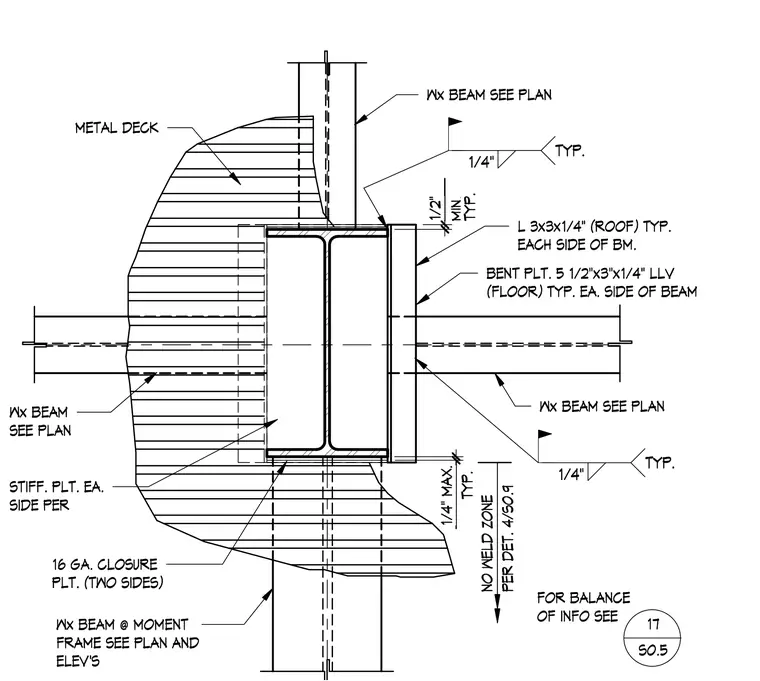

Wide-flange beams frame into the column flange and web with specific no-weld zones indicated per detail 4/S0.9. Stiffener plates are welded to each side of the column web with quarter-inch fillet welds. At the roof level, 3-inch by 3-inch by 1/4-inch angles are provided on each side of the beam, while at the floor level, 5-1/2 inch by 3-inch by 1/4-inch bent plates are used. Sixteen-gauge closure plates are installed on two sides, and metal deck spans across the framing with specified clearances including a half-inch minimum and quarter-inch maximum typical dimension.
Wx BEAM SEE PLAN L 3x3x1/4" (ROOF) TYP. EACH SIDE OF BM. BENT PLT. 5 1/2"x3"x1/4" LLV (FLOOR) TYP. EA. SIDE OF BEAM Wx BEAM SEE PLAN Wx BEAM SEE PLAN METAL DECK Wx BEAM @ MOMENT FRAME SEE PLAN AND ELEV'S 16 GA. CLOSURE PLT. (TWO SIDES) FOR BALANCE OF INFO SEE NO WELD ZONE PER DET. 4/S0.9 STIFF. PLT. EA. SIDE PER 1/4" TYP. 1/4" MAX. TYP. 1/2" MIN. TYP. 17 S0.5 1/4" TYP.
