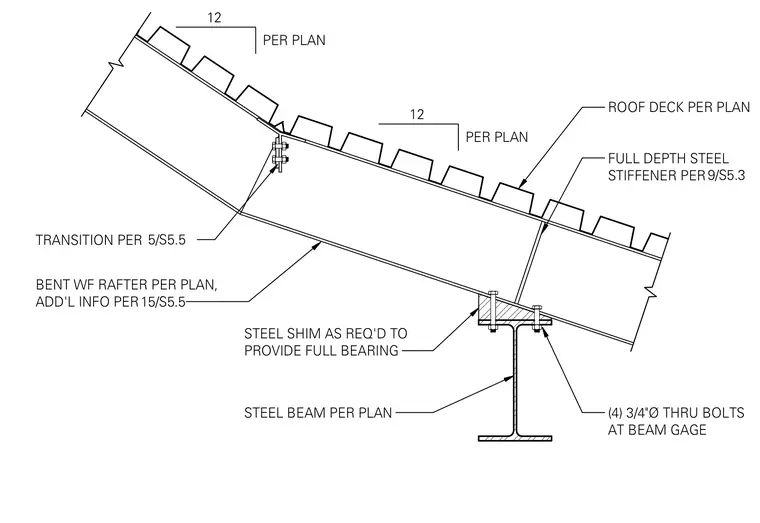

A bent wide-flange rafter bears directly onto a dropped structural steel beam, supported by steel shims as required to provide full bearing. The connection is secured using four three-quarter-inch-diameter through bolts located at the beam gage. A full-depth steel stiffener is provided beneath the bearing point. The assembly carries a roof deck above and includes a slope transition.
12 PER PLAN 12 PER PLAN STEEL SHIM AS REQ'D TO PROVIDE FULL BEARING STEEL BEAM PER PLAN (4) 3/4"Ø THRU BOLTS AT BEAM GAGE FULL DEPTH STEEL STIFFENER PER BENT WF RAFTER PER PLAN, ADD'L INFO PER 15/S5.5 ROOF DECK PER PLAN 9/S5.3 TRANSITION PER 5/S5.5
