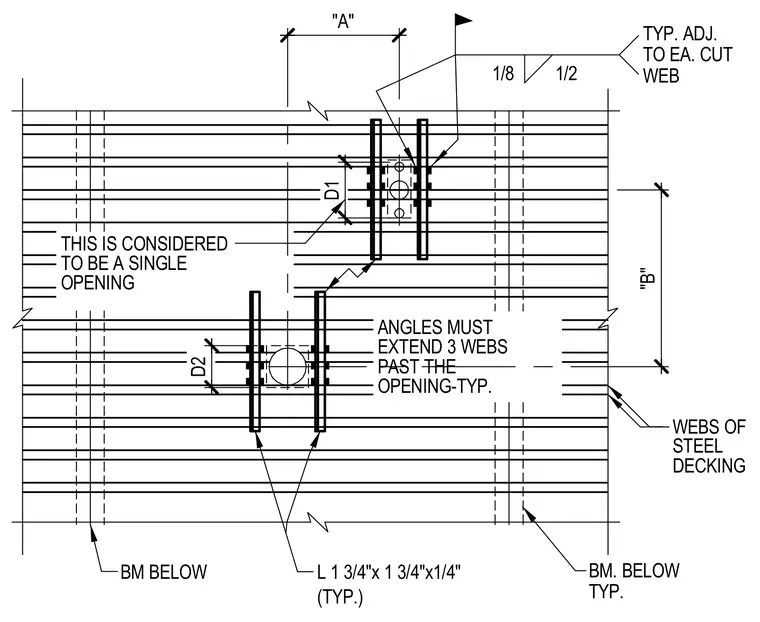

Structural steel framing for deck openings requires angle reinforcements placed adjacent to each cut web. The 1 3/4 inch by 1 3/4 inch by 1/4 inch angles must extend three webs past the opening on typical installations. Fillet welds secure the angle assemblies to the steel decking and supporting beams below.
TYP. ADJ. TO EA. CUT WEB 1/8 1/2 (TYP.) L 1 3/4"x 1 3/4"x1/4" BM BELOW OPENING THIS IS CONSIDERED TO BE A SINGLE DECKING WEBS OF OPENING-TYP. BM. BELOW TYP. STEEL EXTEND 3 WEBS ANGLES MUST PAST THE D1 D2 "B" "A"
