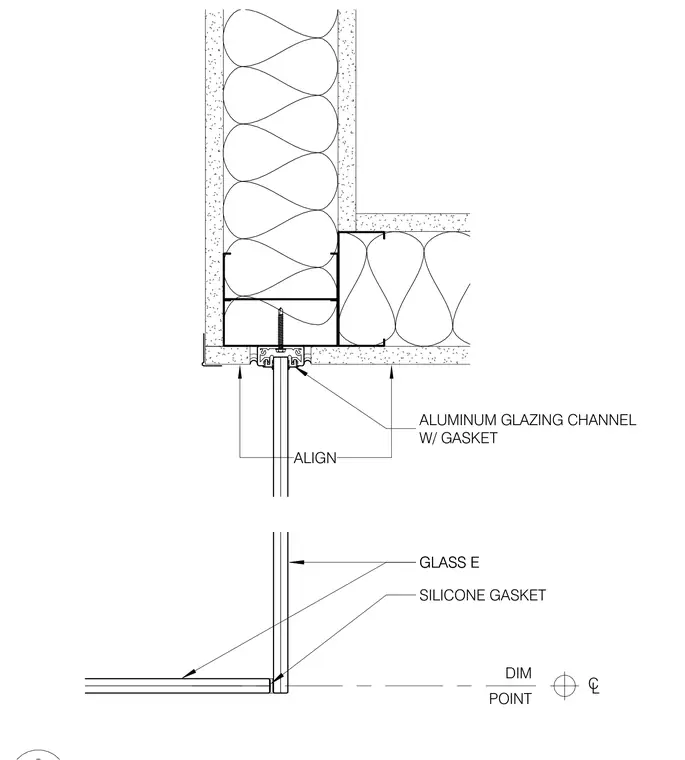

An interior glass partition terminates at a framed wall assembly utilizing an aluminum glazing channel with a silicone gasket. The glass pane aligns with the centerline dimension point shown on the plan. The connection integrates with the surrounding gypsum board partition framing and insulation.
ALIGN GLASS E SILICONE GASKET CL DIM POINT GLASS E ALUMINUM GLAZING CHANNEL W/ GASKET
