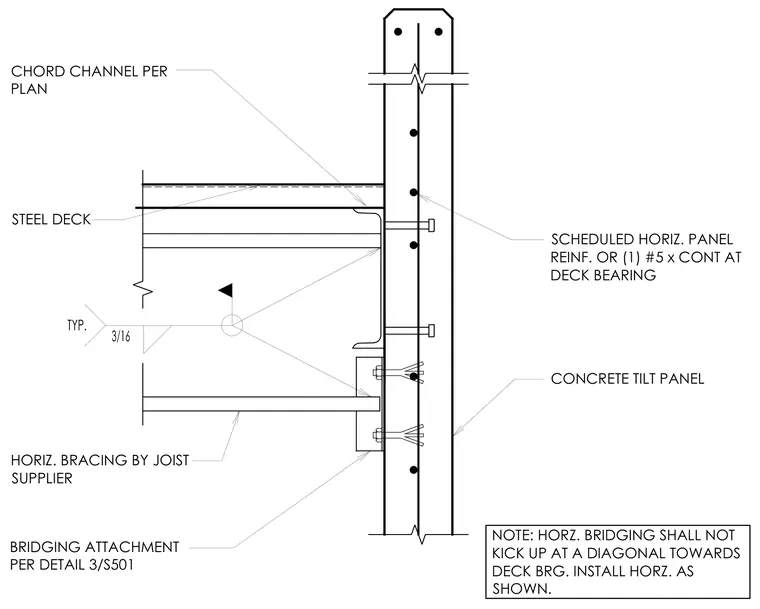

A steel deck bears on a chord channel secured to a concrete tilt-up wall panel with scheduled horizontal panel reinforcement or one continuous number 5 rebar at the deck bearing. A joist with horizontal bridging supplied by the joist manufacturer connects below, featuring bridging attachments per detail 3/S501. The horizontal bridging is installed horizontally without kicking up at a diagonal toward the deck bearing.
BRIDGING ATTACHMENT PER DETAIL 3/S501 HORIZ. BRACING BY JOIST SUPPLIER NOTE: HORZ. BRIDGING SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG. INSTALL HORZ. AS SHOWN. CHORD CHANNEL PER PLAN STEEL DECK SCHEDULED HORIZ. PANEL REINF. OR (1) #5 x CONT AT DECK BEARING CONCRETE TILT PANEL
