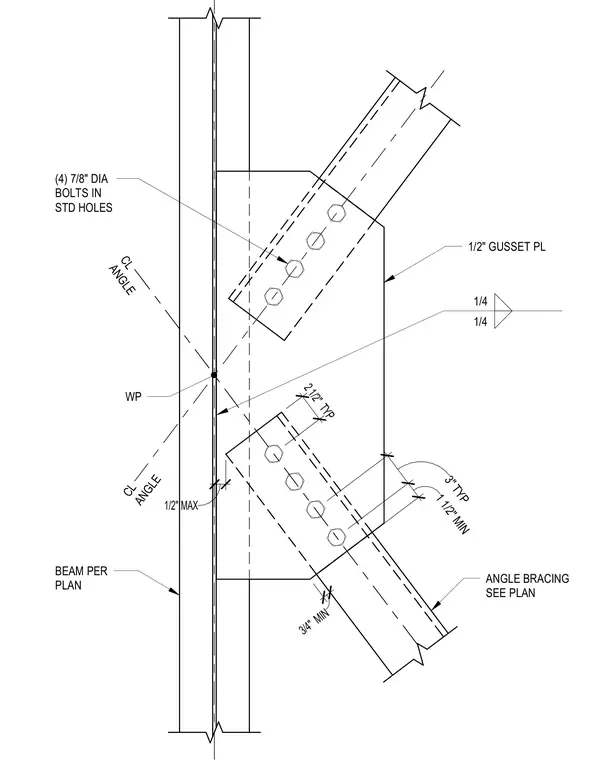

An angle bracing member connects to a structural steel beam via a one-half-inch gusset plate welded to the beam web with quarter-inch fillet welds. The brace fastens to the gusset plate using four seven-eighth-inch diameter bolts in standard holes. The work point aligns the centerlines of the intersecting members within specified dimensional clearances.
1/2" GUSSET PL 1/4 1/4 1 1/2" MIN 3" TYP ANGLE BRACING SEE PLAN BEAM PER PLAN WP (4) 7/8" DIA BOLTS IN STD HOLES CL ANGLE CL ANGLE 2 1/2" TYP 3/4" MIN 1/2" MAX
