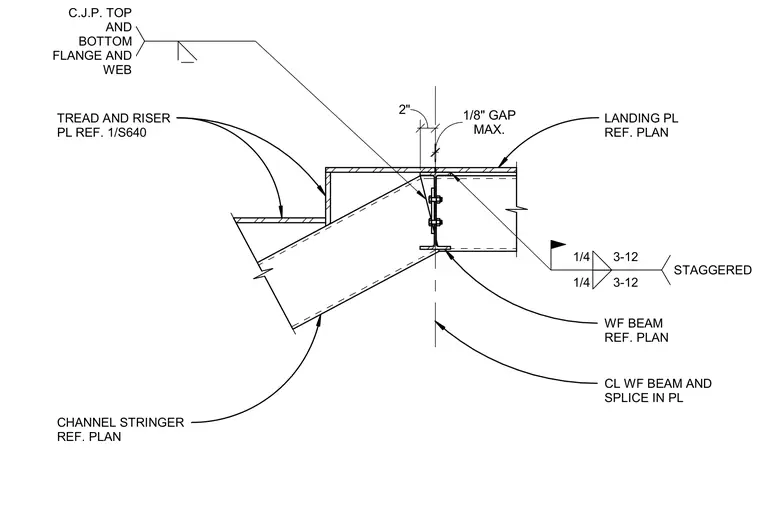

An inclined channel stringer meets a wide flange landing beam with a two-inch maximum offset and a one-eighth inch gap. The connection utilizes a complete joint penetration weld at the top and bottom flange and web, alongside a bolted splice plate on the wide flange beam web. A landing plate and tread and riser plates tie into the assembly per the structural plans. Staggered fillet welds secure the secondary members.
2" MAX. 1/8" GAP WF BEAM REF. PLAN CHANNEL STRINGER REF. PLAN TREAD AND RISER PL REF. 1/S640 CL WF BEAM AND SPLICE IN PL LANDING PL REF. PLAN 1/4 3-12 1/4 3-12 STAGGERED C.J.P. TOP AND BOTTOM FLANGE AND WEB
