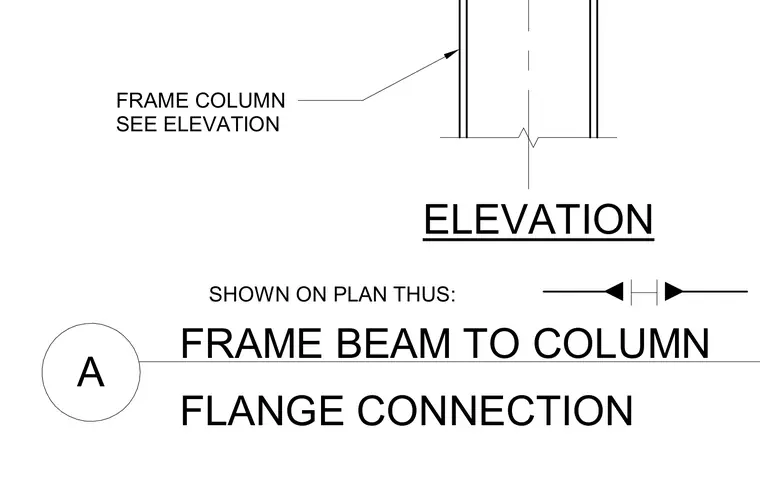

A frame beam connects to a column flange, accompanied by elevation and plan orientation references.
ELEVATION FRAME BEAM TO COLUMN FLANGE CONNECTION A SHOWN ON PLAN THUS: FRAME COLUMN SEE ELEVATION
