Structural · S-Q4W33

Exterior Wide Flange Column at Footing

Materials

Elements

Columns Floors / Slabs Foundations / Footings

About this detail

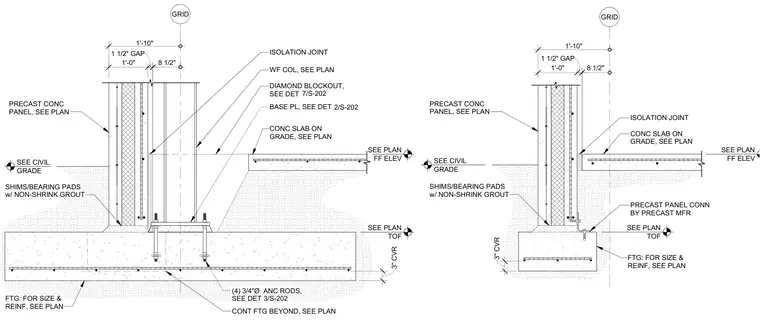

An exterior wide flange steel column anchors to a continuous concrete footing using four three-quarter-inch diameter anchor rods and a base plate, bearing on shims and non-shrink grout. A concrete slab on grade interfaces with the assembly via an isolation joint and a diamond blockout detailed separately. Precast concrete wall panels with three-inch concrete cover are supported by bearing pads and connected by the precast manufacturer. The continuous footing size and reinforcement are sized per plan below finished floor and top of footing elevations.
