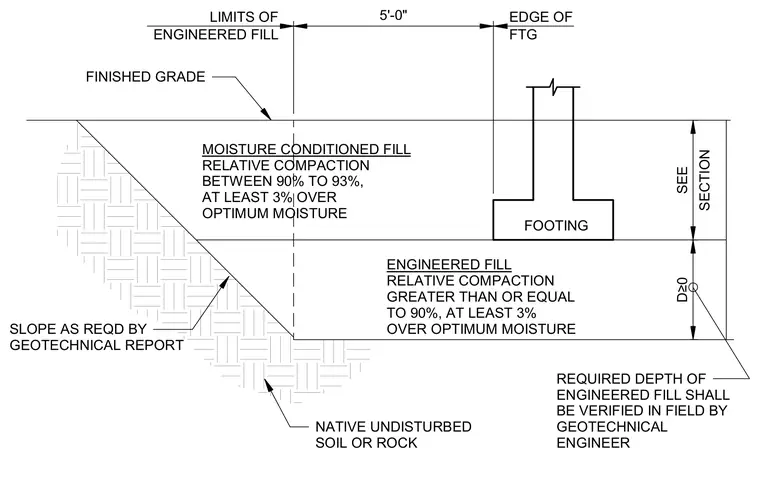

Foundation footings bear upon compacted engineered fill placed over native undisturbed soil or rock. Moisture-conditioned fill requires a relative compaction between ninety percent and ninety-three percent at at least three percent over optimum moisture. Deeper engineered fill requires a relative compaction greater than or equal to ninety percent at at least three percent over optimum moisture. Fill slopes conform to the geotechnical report with a minimum five-foot horizontal distance from the edge of the footing to the fill limit. The required depth of engineered fill and depth dimension D are verified in the field by the geotechnical engineer.
FOOTING FINISHED GRADE NATIVE UNDISTURBED SOIL OR ROCK ENGINEERED FILL RELATIVE COMPACTION GREATER THAN OR EQUAL TO 90%, AT LEAST 3% OVER OPTIMUM MOISTURE MOISTURE CONDITIONED FILL RELATIVE COMPACTION BETWEEN 90% TO 93%, AT LEAST 3% OVER OPTIMUM MOISTURE REQUIRED DEPTH OF ENGINEERED FILL SHALL BE VERIFIED IN FIELD BY GEOTECHNICAL ENGINEER SLOPE AS REQD BY GEOTECHNICAL REPORT 5'-0" D≥0 SECTION SEE EDGE OF FTG LIMITS OF ENGINEERED FILL
