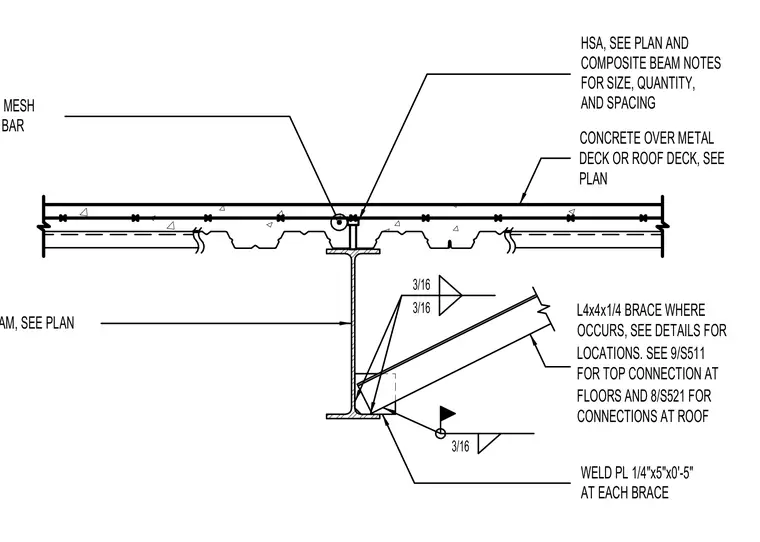

An L4x4x1/4 structural steel angle brace connects to the web and bottom flange of a wide-flange steel beam via a 1/4-inch by 5-inch by 5-inch plate welded with three-sixteenths-inch fillet welds. The steel beam supports a concrete fill over a metal floor or roof deck, featuring continuous mesh support bars and shear studs sized per plan. Field welds secure the brace and plate assembly to the supporting member. Additional connections and top brace locations are referenced to specific structural detail sheets.
LOCATIONS. SEE 9/S511 FLOORS AND 8/S521 FOR WELD PL 1/4"x5"x0'-5" AT EACH BRACE 3/16 3/16 STEEL BEAM, SEE PLAN HSA, SEE PLAN AND COMPOSITE BEAM NOTES FOR SIZE, QUANTITY, AND SPACING #4 x CONT MESH SUPPORT BAR 3/16 L4x4x1/4 BRACE WHERE OCCURS, SEE DETAILS FOR FOR TOP CONNECTION AT CONNECTIONS AT ROOF CONCRETE OVER METAL DECK OR ROOF DECK, SEE PLAN
