S-Q4JCE — Typical Steel Beam to Steel Column Connection

Structural · S-Q4JCE

Typical Steel Beam to Steel Column Connection

Materials

Elements

Columns Beams Decks Connections / Plates

About this detail

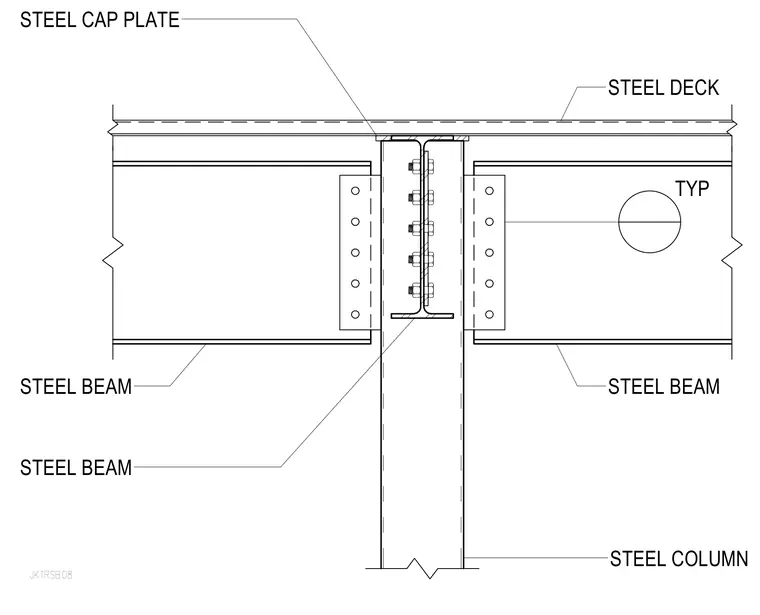

Steel beams frame into a vertical steel column using bolted shear tabs welded to the column web. A steel cap plate tops the column flange to support the assembly beneath the steel deck. Bolts secure the beam webs to the connection plates on each side of the column.

JK1RSB08 STEEL COLUMN STEEL BEAM STEEL DECK STEEL CAP PLATE TYP STEEL BEAM STEEL BEAM

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
