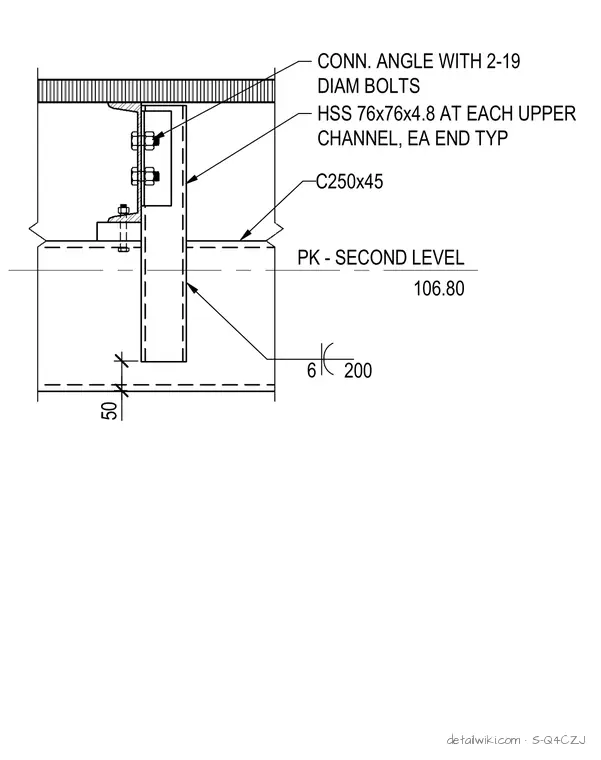

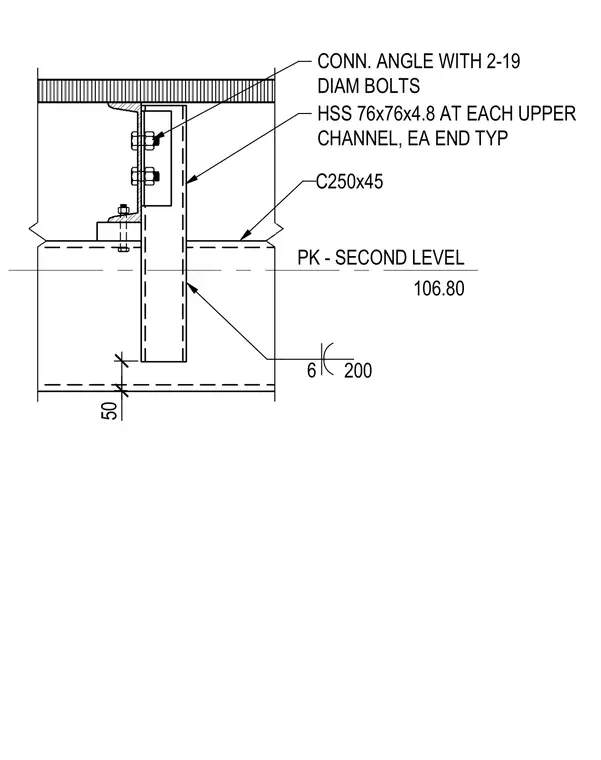

The assembly features a hollow structural section (HSS 76x76x4.8) connected to an upper channel member using a connection angle with two 19 mm diameter bolts. A channel section (C250x45) is integrated into the framing at the second level elevation reference point of 106.80. The components are bolted together to transfer loads between the structural framing elements.
Text on the drawing
PK - SECOND LEVEL 106.80 C250x45 HSS 76x76x4.8 AT EACH UPPER CHANNEL, EA END TYP CONN. ANGLE WITH 2-19 DIAM BOLTS 50 6 200
