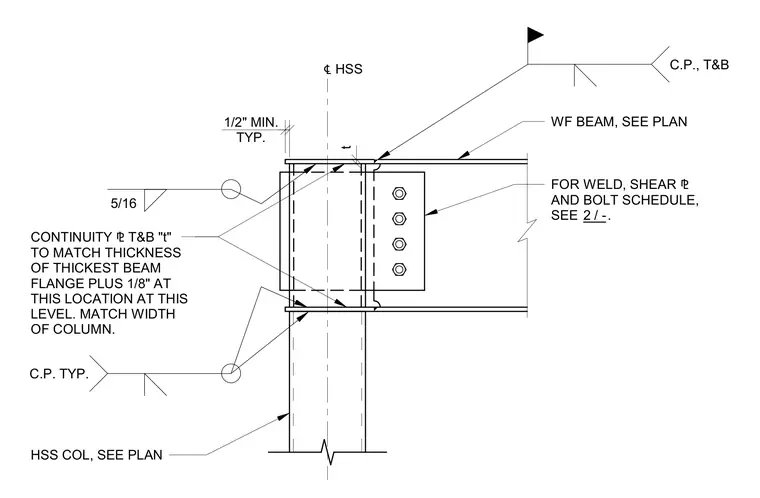

A wide-flange beam connects to a hollow structural section column with top and bottom continuity plates matching the width of the column. The continuity plate thickness matches the thickest beam flange plus one-eighth inch at this level, welded with a five-sixteenth inch complete joint penetration weld at the top and bottom. A shear plate connects the beam web with a bolted schedule specified elsewhere. A minimum one-half inch clearance is maintained at the column face.
FOR WELD, SHEAR ⅊ AND BOLT SCHEDULE, SEE . WF BEAM, SEE PLAN CONTINUITY ⅊ T&B "t" TO MATCH THICKNESS OF THICKEST BEAM FLANGE PLUS 1/8" AT THIS LOCATION AT THIS LEVEL. MATCH WIDTH OF COLUMN. HSS COL, SEE PLAN ℄ HSS TYP. 1/2" MIN. t 2 / - C.P. TYP. 5/16 C.P., T&B
