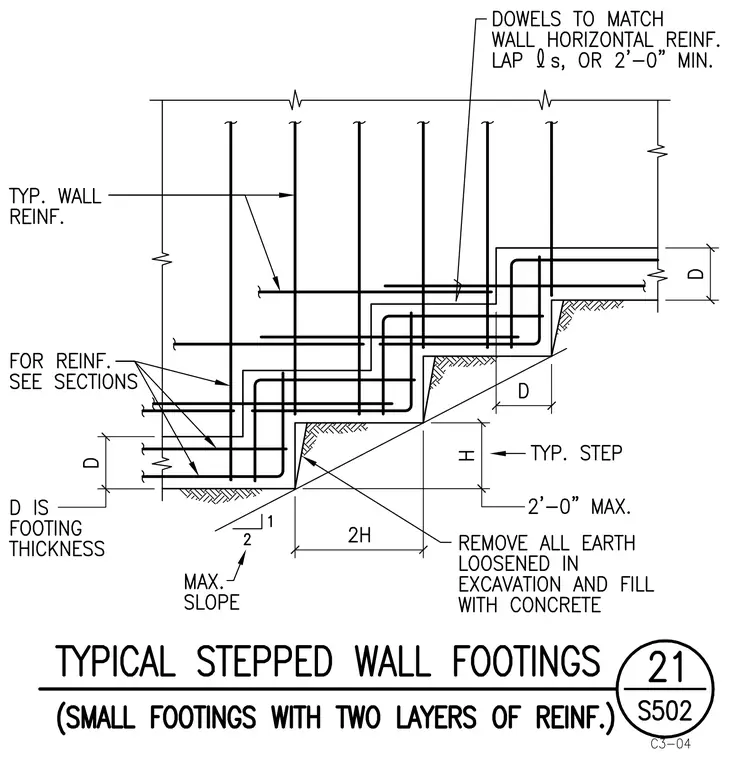

A stepped wall footing features two layers of reinforcement and vertical wall reinforcement. Dowels match the wall horizontal reinforcement with required lap lengths or a two-foot minimum. The footing incorporates typical stepped increments with a two-foot maximum height, supported by sloped subgrade excavations filled with concrete where soil is loosened. Footing thickness is designated as D, with specific footing reinforcement detailed per sections.
