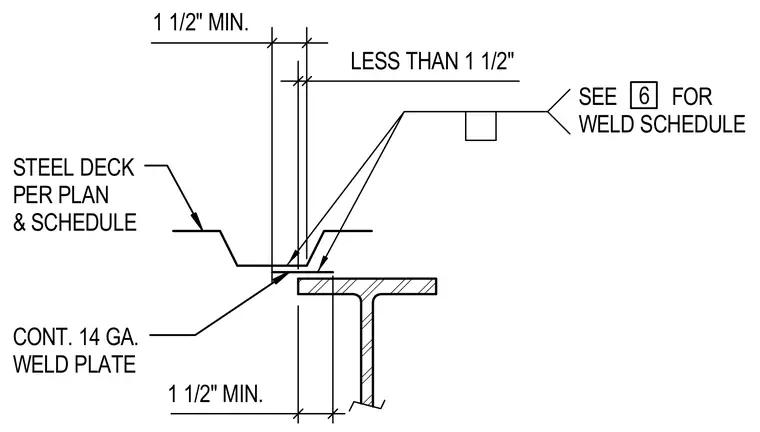

Steel deck is supported by a structural steel beam and detailed with a continuous fourteen gauge weld plate. Dimensions indicate a one and one-half inch minimum bearing clearance at the support flange. Edge distances are specified with a one and one-half inch minimum and less than one and one-half inch conditions. Welding requirements reference sheet six for the weld schedule.
SEE FOR WELD SCHEDULE LESS THAN 1 1/2" CONT. 14 GA. WELD PLATE 1 1/2" MIN. 1 1/2" MIN. STEEL DECK PER PLAN & SCHEDULE 6
