Structural · S-Q3RFT

Steel Joist Bearing at Concrete Tilt-Up Wall Panel Joint

Materials

Concrete Steel

Elements

Beams Walls Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

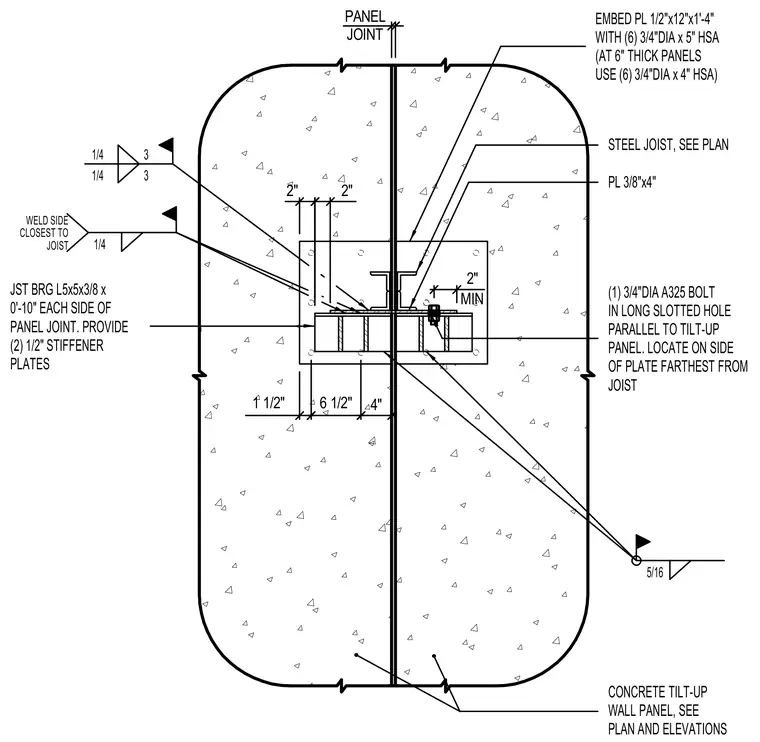

A steel joist bears within five inches of a concrete tilt-up wall panel joint. The assembly anchors to the concrete tilt-up wall panels using a one-half-inch by twelve-inch by one-foot-four-inch embed plate equipped with six three-quarter-inch diameter by five-inch heavy stud anchors, or four-inch anchors for six-inch thick panels. A pair of five-inch by five-inch by three-eighths-inch joist bearing angles, ten inches long, are positioned on each side of the panel joint with two one-half-inch stiffener plates. The steel joist connects via a three-eighths-inch by four-inch plate secured with one three-quarter-inch diameter ASTM A325 bolt placed in a long slotted hole parallel to the tilt-up panel, located on the side of the plate farthest from the joist. Fillet welds of one-quarter-inch and five-inch sizes are specified at the bearing angles and embed plates, with the weld side located closest to the joist.
