Structural · S-Q3PWN

HSS Column and Steel Plate Connection at Timber and CLT Panel

Materials

Steel Timber / Wood

Elements

Columns Connections / Plates

Connections

HSS Connection Timber / Mass-Timber Connection

About this detail

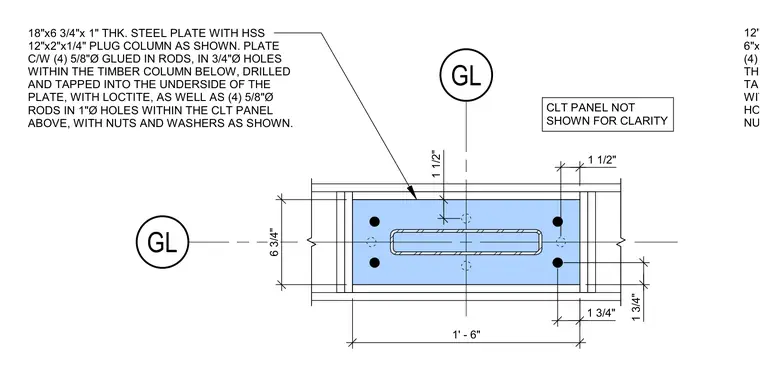

This structural detail shows a steel plate measuring 18 inches by 6 and 3/4 inches by 1 inch thick with an HSS 12-inch by 2-inch by 1/4-inch plug column. The assembly connects to the timber column below using four 5/8-inch diameter glued-in rods placed in 3/4-inch diameter holes, drilled and tapped into the underside of the plate with Loctite. It also incorporates four 5/8-inch diameter rods in 1-inch diameter holes within the cross-laminated timber panel above, secured with nuts and washers. The cross-laminated timber panel is omitted in parts for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
