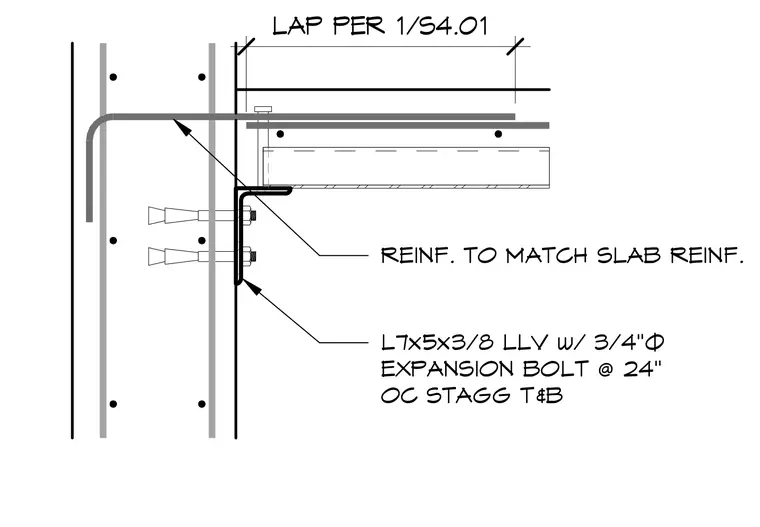

A structural steel ledger angle designated as L7x5x3/8 with long leg vertical is anchored to a concrete wall using three-quarter-inch diameter expansion bolts spaced at twenty-four inches on center staggered top and bottom. The supported concrete slab features reinforcing steel that matches the slab reinforcement and laps per detail 1/S4.01.
L7x5x3/8 LLV w/ 3/4"Ø EXPANSION BOLT @ 24" OC STAGG T&B LAP PER 1/S4.01 REINF. TO MATCH SLAB REINF.
