Structural · S-Q35FT

Typical Steel Beam Connection Details

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

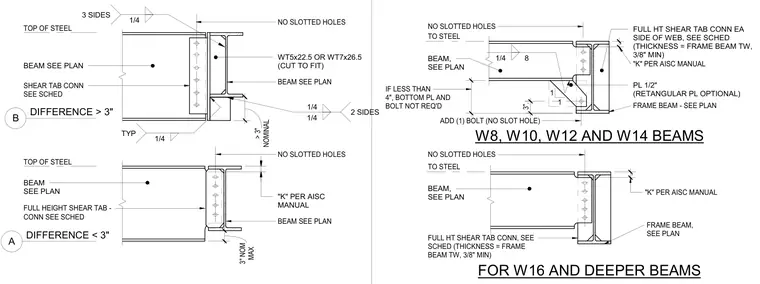

These structural framing details show steel beam connections for varying beam depths with top of steel offsets greater than or less than 3 inches. The connections utilize full height shear tabs welded to the frame beam web with a minimum thickness matching the web and at least 3/8 inches thick, featuring no slotted holes to steel and AISC manual "K" clearances. For deeper beam configurations, cut WT5x22.5 or WT7x26.5 tee sections and 1/2 inch rectangular plates provide bottom support welded with 1/4 inch fillets. Additional unslotted bolts are added where dimension constraints require them, while configurations with small height differences omit bottom plates.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
