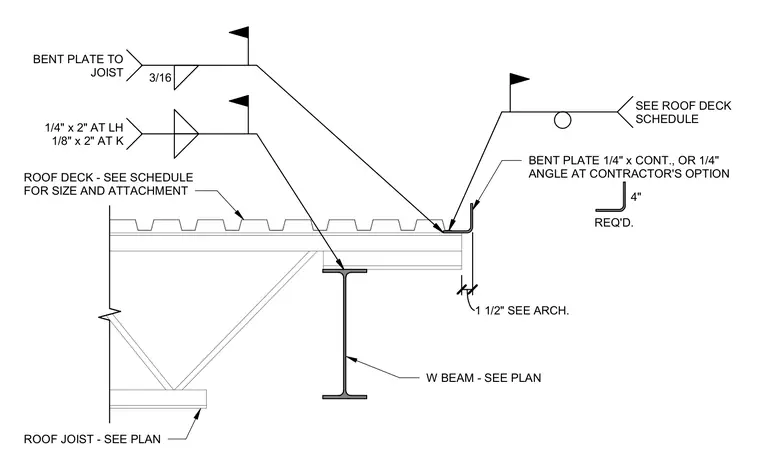

A continuous steel roof deck bears on a wide-flange beam and open-web steel joist sized per plan. A continuous one-quarter-inch bent plate or alternative one-quarter-inch angle is provided at the contractor's option along the edge. The bent plate is secured to the joist with a three-sixteenths-inch weld. The roof deck is attached per the structural schedule for size and attachment.
BENT PLATE 1/4" x CONT., OR 1/4" ANGLE AT CONTRACTOR'S OPTION W BEAM - SEE PLAN ROOF JOIST - SEE PLAN 4" REQ'D. 1 1/2" SEE ARCH. 3/16 BENT PLATE TO JOIST SEE ROOF DECK SCHEDULE 1/4" x 2" AT LH 1/8" x 2" AT K ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
