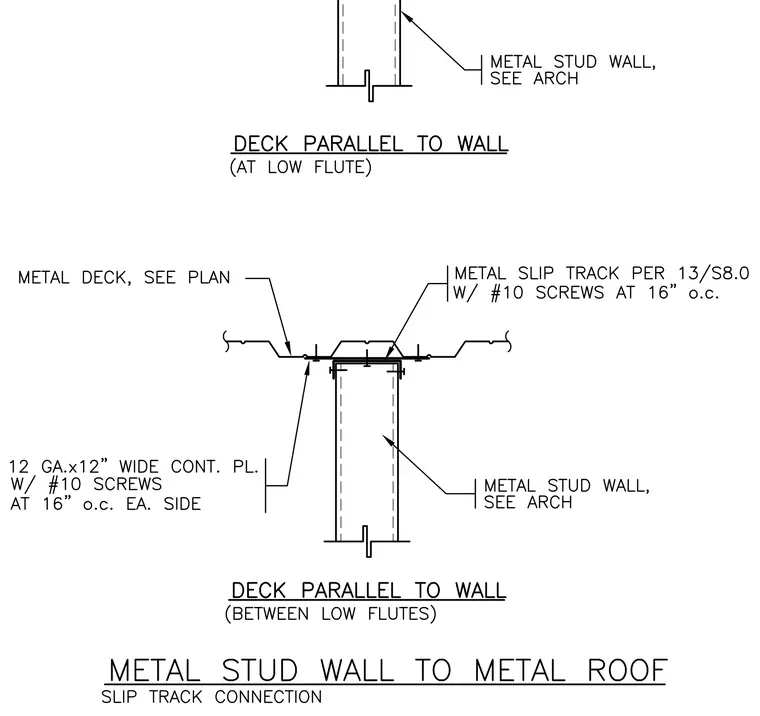

A metal stud wall bears beneath a metal roof deck with a slip track connection. The metal slip track is secured to the wall per detail 13/S8.0 using number 10 screws at sixteen inches on center. A twelve gauge by twelve inch wide continuous plate attaches beneath the metal deck with number 10 screws at sixteen inches on center on each side.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
