Typical Steel Platform Detail For Future Mechanical Equipment

Materials

Concrete Steel Metal (misc.)

Elements

Columns Roofs Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

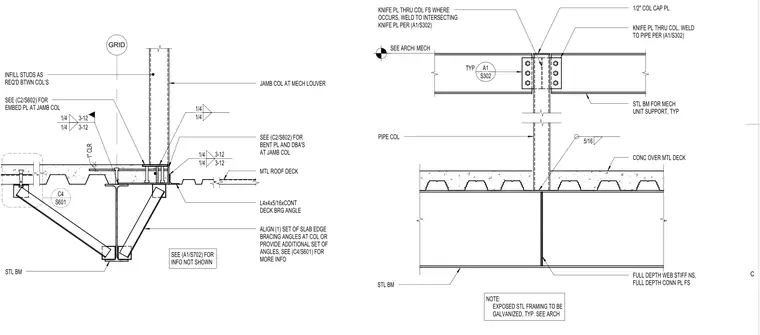

A structural steel platform framing assembly supports future mechanical equipment over a concrete and metal deck roof system. The connection incorporates a pipe column featuring a one-half inch column cap plate and knife plates welded to intersecting members. Steel beams for mechanical unit support tie into the framing with full-depth web stiffeners on the near side and full-depth connection plates on the far side. Additional conditions detail the jamb column at a mechanical louver with continuous deck bearing angles, slab edge bracing angles, and infill studs as required. All exposed steel framing is specified to be galvanized typically.
