Structural · S-Q2K9W

Exterior Concrete Stair and Ramp Details

Materials

Concrete

Elements

Walls Stairs Ramps Railings / Guards Floors / Slabs Stem Walls Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

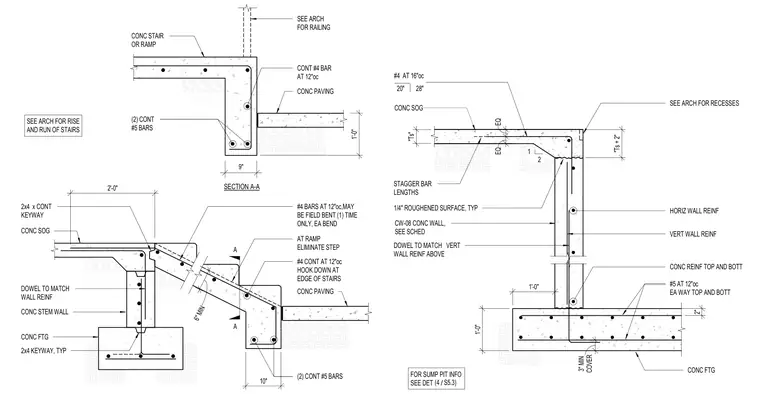

Exterior concrete stair and ramp details showing concrete slab-on-grade bearing on concrete stem walls with continuous keyways and dowels matching vertical wall reinforcing above. Concrete footings feature bottom reinforcing with three-inch minimum cover and vertical dowels extending up into stem walls. Stair and ramp sections detail continuous number-five bottom bars, continuous number-four top bars hooked down at edges, and number-four bars at twelve inches on center that may be field bent one time each bend. Concrete paving abuts the assembly with a one-foot thickness transition. Separate wall and footing details specify top and bottom concrete reinforcing at twelve inches on center each way, staggered bar lengths, and a quarter-inch roughened surface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
