Structural · S-Q2K8F

Walkway Bridge Connection at Concrete Wall and Foundation

Materials

Concrete Steel

Elements

Walls Floors / Slabs Decks Arches Anchors / Embeds

Connections

Embed Plate

About this detail

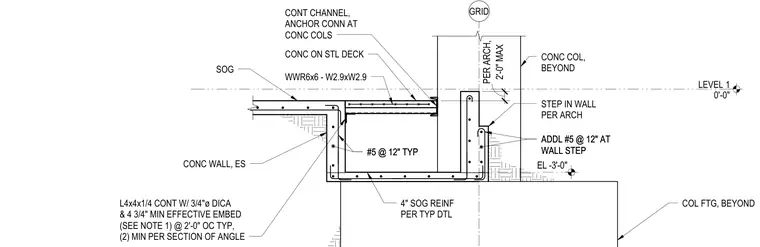

A walkway bridge slab on grade bears on a continuous concrete wall and footing at Level 1, set at elevation 0'-0". A continuous L4x4x1/4 angle with 3/4-inch diameter dowels and 4-3/4-inch minimum effective embedment at 2'-0" on center anchors to the concrete wall, with two minimum per section of angle. The concrete wall features reinforcing with number 5 bars at 12 inches on center each side, stepping down to elevation -3'-0" with additional number 5 bars at 12 inches on center at the wall step. A concrete on steel deck slab with welded wire reinforcement 6x6-W2.9xW2.9 transitions to the slab on grade, framed against a continuous channel anchor connection at the concrete column beyond. The concrete column footing is positioned below, with the column extending upward through the grid intersection.
