Metal studs sized per plan or elevations frame into a Pro-XTC header profile matching the specified stud width. Typical number 12 self-tapping sheet metal screws fasten each side of the stud at each stud spacing. Additional sheet metal screws connect the insert at eight inches on center per side in accordance with the IAPMO evaluation report.

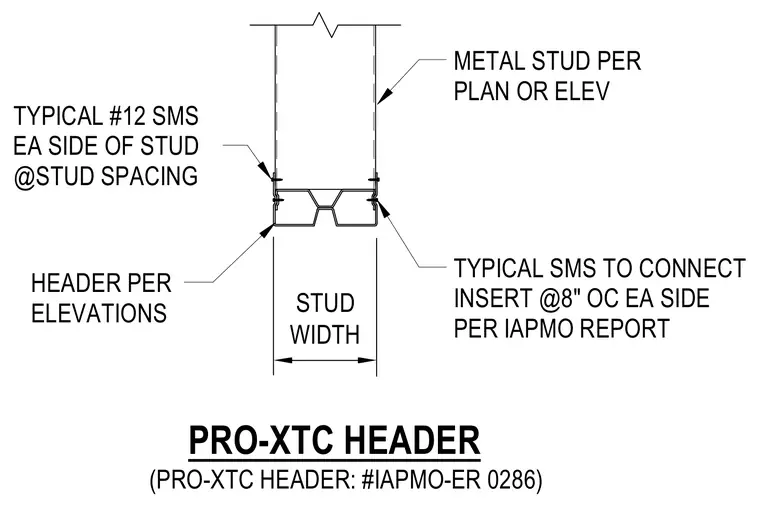

HEADER PER ELEVATIONS WIDTH STUD TYPICAL #12 SMS EA SIDE OF STUD @STUD SPACING (PRO-XTC HEADER: #IAPMO-ER 0286) PRO-XTC HEADER TYPICAL SMS TO CONNECT INSERT @8" OC EA SIDE PER IAPMO REPORT METAL STUD PER PLAN OR ELEV
