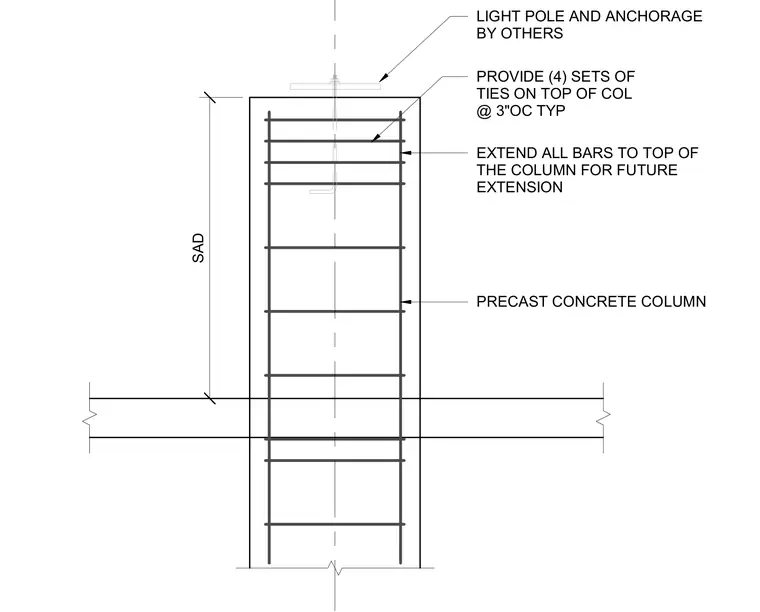

A light pole and its anchorage are mounted at the top of a precast concrete column. Four sets of ties are provided at the top of the column at three inches on center, typical. All vertical reinforcing bars extend to the top of the column to accommodate future extensions. Anchorage for the light pole is provided by others.
EXTEND ALL BARS TO TOP OF THE COLUMN FOR FUTURE EXTENSION LIGHT POLE AND ANCHORAGE BY OTHERS SAD PROVIDE (4) SETS OF TIES ON TOP OF COL @ 3"OC TYP PRECAST CONCRETE COLUMN
