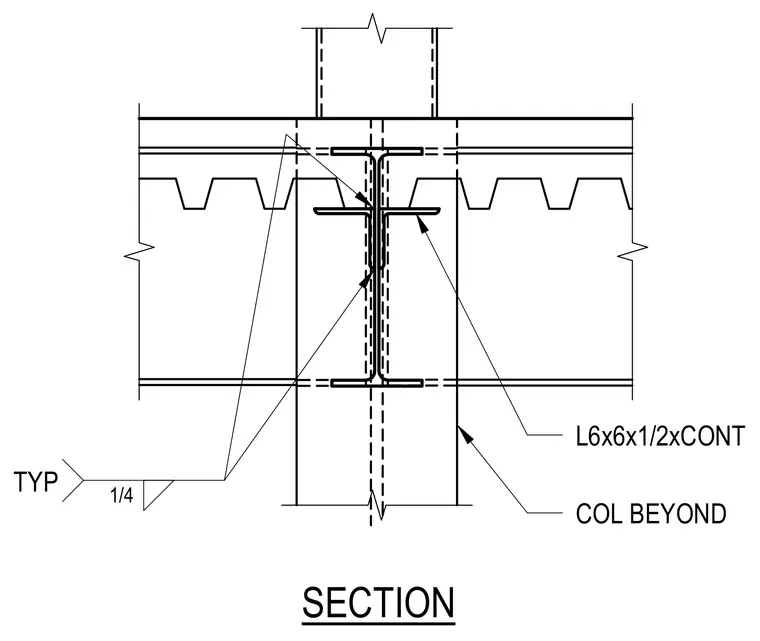

A continuous six-by-six-by-one-half-inch angle connects structurally with framing members adjacent to a continuous column beyond. A one-quarter-inch typical fillet weld secures the assembly at the indicated joints. The drawing details the interface between the steel framing and the supporting column element.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
