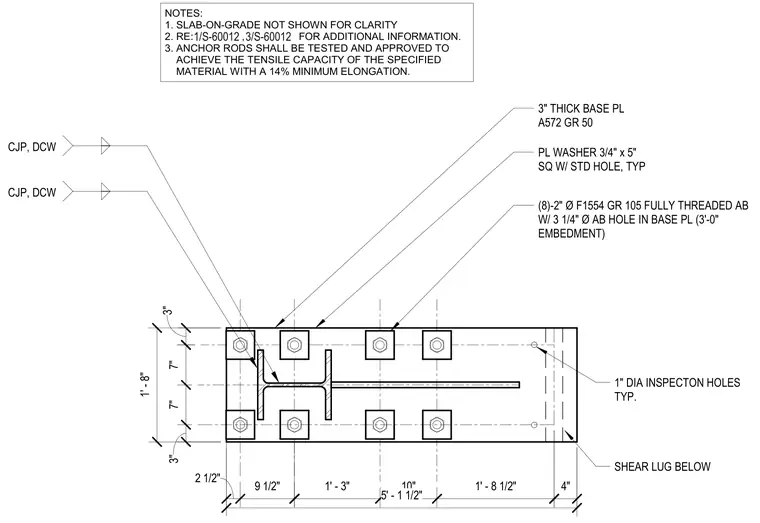

This assembly consists of a three-inch thick ASTM A572 Grade 50 steel base plate secured by eight two-inch diameter ASTM F1554 Grade 105 fully threaded anchor bolts with three-foot embedment. Each anchor bolt passes through a three-and-a-quarter-inch diameter hole in the base plate and is topped with a three-quarter-inch by five-inch square plate washer with a standard hole. The column is connected to the base plate using complete joint penetration welds with demand critical welds. One-inch diameter inspection holes are provided in the base plate, and a shear lug is located beneath the plate to resist lateral forces.
Text on the drawing
(8)-2" Ø F1554 GR 105 FULLY THREADED AB W/ 3 1/4" Ø AB HOLE IN BASE PL (3'-0" EMBEDMENT) PL WASHER 3/4" x 5" SQ W/ STD HOLE, TYP 3" THICK BASE PL A572 GR 50 CJP, DCW CJP, DCW 2. RE: , FOR ADDITIONAL INFORMATION. 3. ANCHOR RODS SHALL BE TESTED AND APPROVED TO ACHIEVE THE TENSILE CAPACITY OF THE SPECIFIED MATERIAL WITH A 14% MINIMUM ELONGATION. 1" DIA INSPECTON HOLES TYP. 3" 3" 7" 7" 1' - 8" 1/S-60012 3/S-60012
