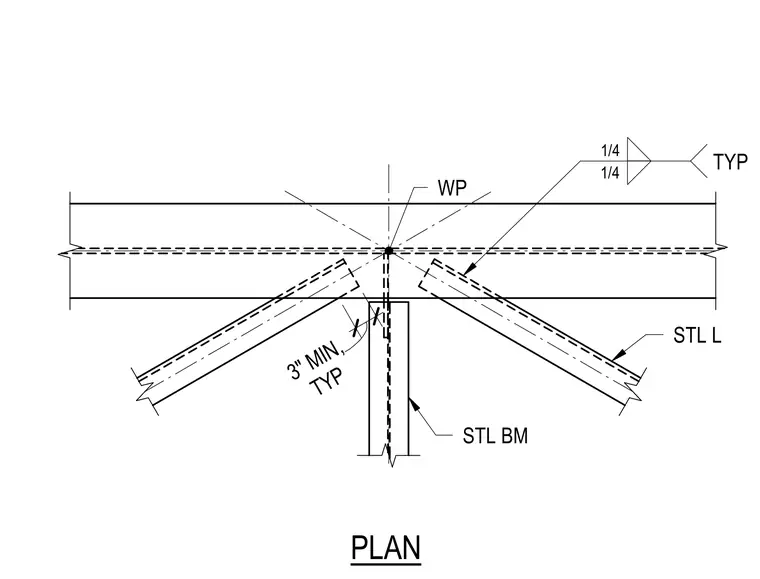

A hanger bottom connection consists of steel angles framing into a steel beam. A work point is established at the intersection of the members, maintaining a three-inch minimum typical clearance. Steel angles are welded to the steel beam with typical one-quarter inch fillet welds.
