Structural · S-PZJE7

Column Splice and Deck Closure Overlap Details

Elements

Connections

About this detail

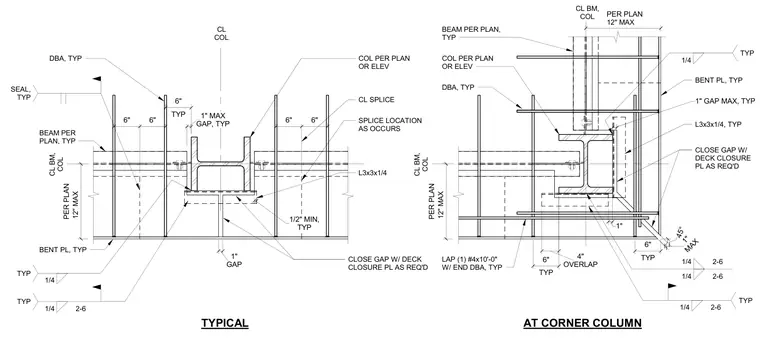

Structural column splices and deck closure conditions for both typical and corner column locations are provided. Steel columns and beams sized per plan connect with L3x3x1/4 angles and typical bent plates welded with quarter-inch fillet welds. Gaps around the deck edge are closed using deck closure plates as required with a maximum one-inch gap. Additional reinforcement includes DBA bars and number 4 bars at ten feet zero inches with an end lap of four to six inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
