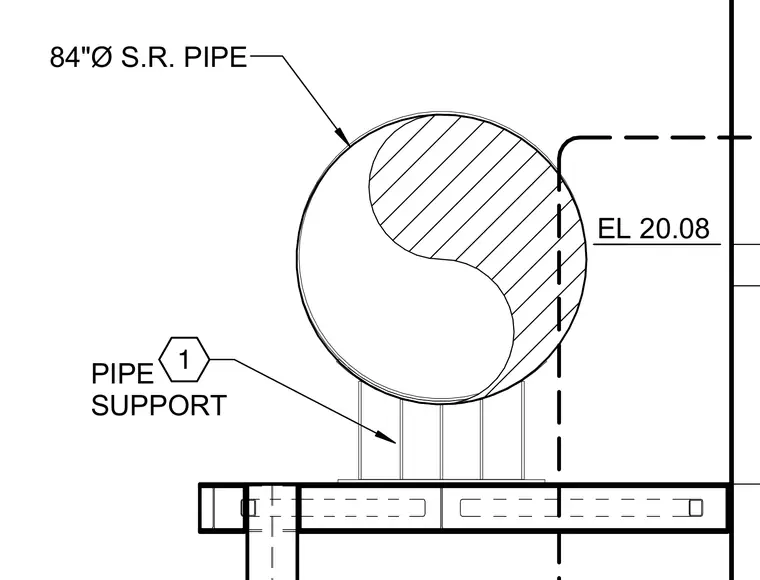

An 84-inch diameter storm reinforced pipe rests on vertical support elements mounted to a concrete base assembly. The invert or centerline elevation is established at 20.08. The support configuration secures the large-diameter utility pipe against lateral and vertical displacement.
EL 20.08 84"Ø S.R. PIPE 1 PIPE SUPPORT
