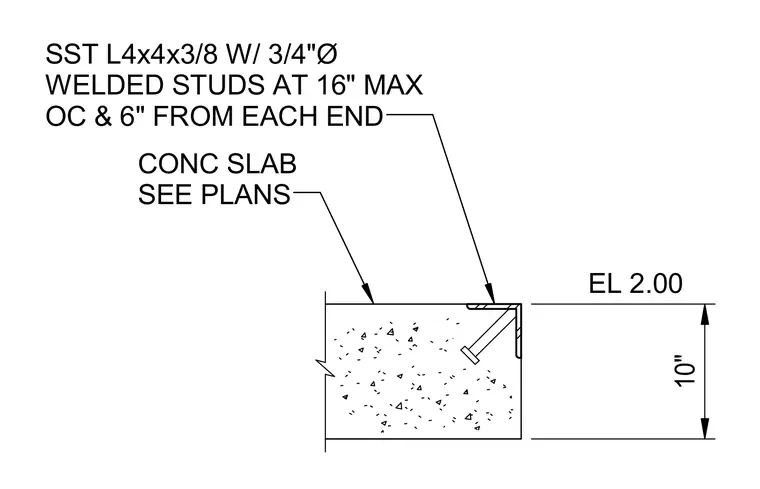

A structural stainless steel angle L4x4x3/8 is cast flush into the edge of a concrete slab sized per plans. Three-quarter inch diameter welded studs are spaced at a maximum of sixteen inches on center and six inches from each end to anchor the angle into the concrete. The top of the concrete slab is set at elevation 2.00 with a ten inch overall thickness.
CONC SLAB SEE PLANS SST L4x4x3/8 W/ 3/4"Ø WELDED STUDS AT 16" MAX OC & 6" FROM EACH END 10" EL 2.00
