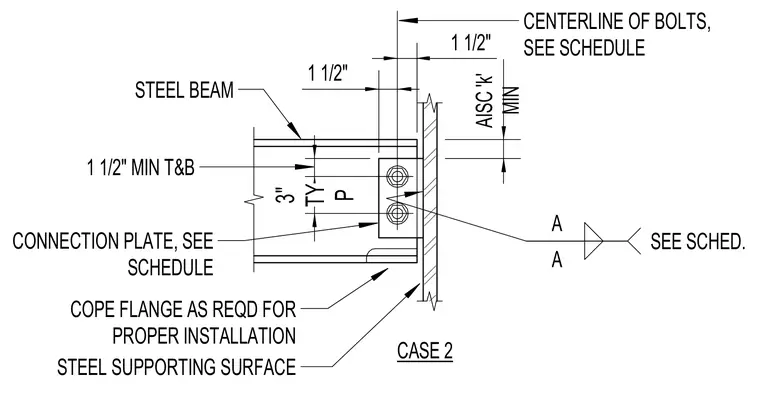

A steel beam connects to a steel supporting surface using a connection plate sized per schedule and secured with bolts. The beam flange features a cope top and bottom as required for proper installation, maintaining the minimum AISC 'k' distance. Bolt centerlines are set at one and one-half inches from the support. The connection plate is typically three inches in dimension and tied back to the supporting surface per structural schedules.
CASE 2 1 1/2" 1 1/2" CENTERLINE OF BOLTS, SEE SCHEDULE SEE SCHED. A A STEEL BEAM CONNECTION PLATE, SEE SCHEDULE STEEL SUPPORTING SURFACE 3" TY P 1 1/2" MIN T&B COPE FLANGE AS REQD FOR PROPER INSTALLATION AISC 'k' MIN
