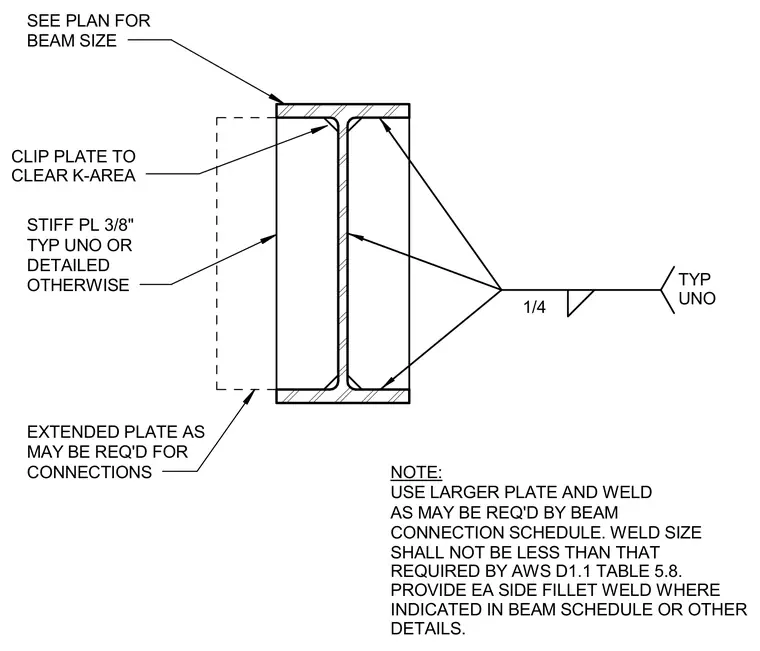

Typical stiffener plates are welded to a steel beam web. The stiffener plates are specified as three-eighths inch thick typically unless noted otherwise, with corners clipped to clear the beam k-area. Fillet welds of one-quarter inch size are applied to each side where indicated, adhering to AWS D1.1 Table 5.8 requirements. Extended plates may be provided as required by the beam connection schedule, and larger plates and welds are used if mandated by design calculations.
MAY BE REQ'D FOR EXTENDED PLATE AS CONNECTIONS AS MAY BE REQ'D BY BEAM CONNECTION SCHEDULE. WELD SIZE USE LARGER PLATE AND WELD NOTE: DETAILED OTHERWISE STIFF PL 3/8" TYP UNO OR BEAM SIZE SEE PLAN FOR 1/4 TYP UNO SHALL NOT BE LESS THAN THAT REQUIRED BY AWS D1.1 TABLE 5.8. PROVIDE EA SIDE FILLET WELD WHERE INDICATED IN BEAM SCHEDULE OR OTHER DETAILS. CLIP PLATE TO CLEAR K-AREA
