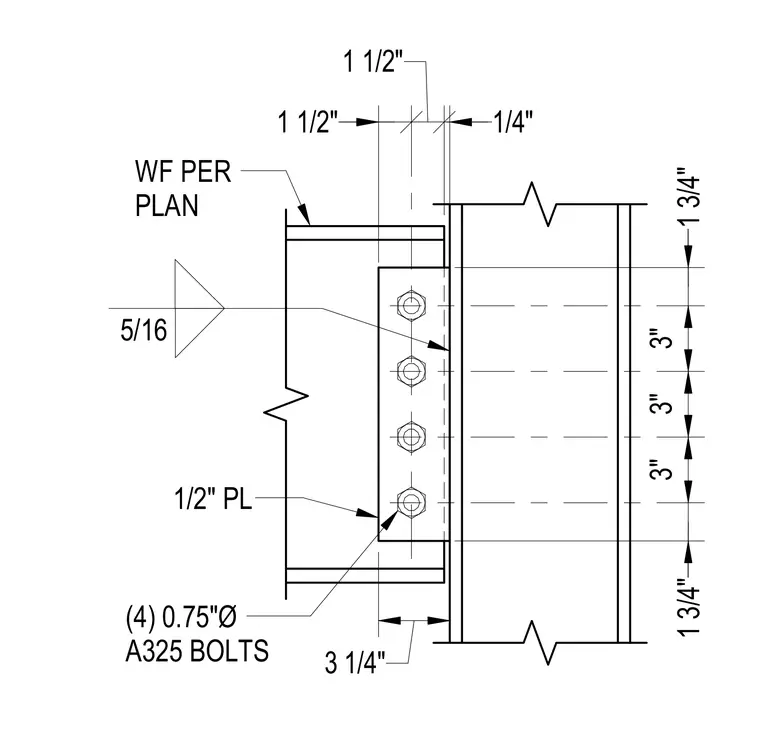

A wide-flange steel beam frames into a steel column flange via a single-plate shear connection. A one-half-inch thick plate is welded to the column face with a five-sixteenths-inch fillet weld. The beam web connects to the plate with four three-quarters-inch diameter A325 bolts spaced at three inches vertically.
WF PER PLAN 5/16 1 3/4" 3" 3" 3" 1 3/4" 1 1/2" 1 1/2" 1/4" 1/2" PL 3 1/4" (4) 0.75"Ø A325 BOLTS
