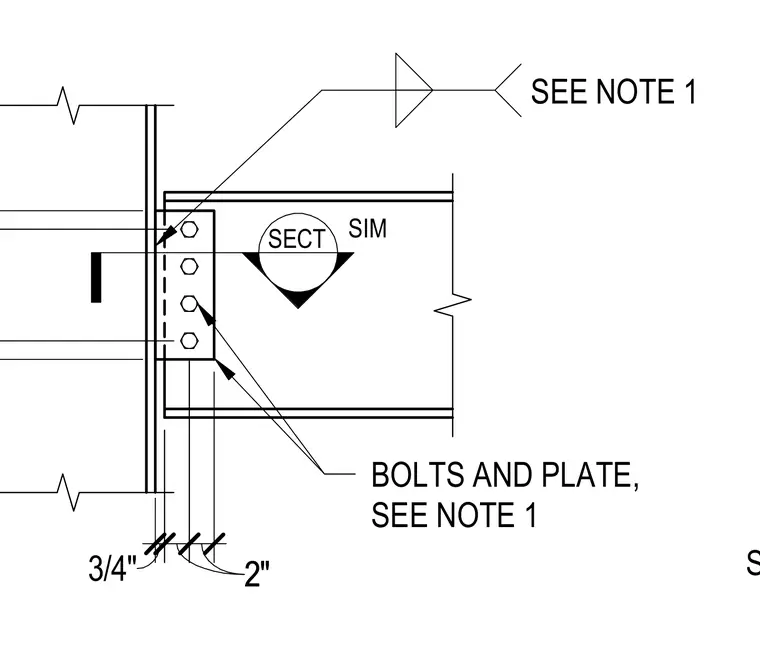

A steel beam connects to a column flange using a welded-to-column, bolted-to-beam connection plate. Four three-quarter-inch bolts fasten the beam web to the connection plate, with spacing dimensions indicated as two inches. The connection assembly references project notes for specific plate sizes and weld configurations.
