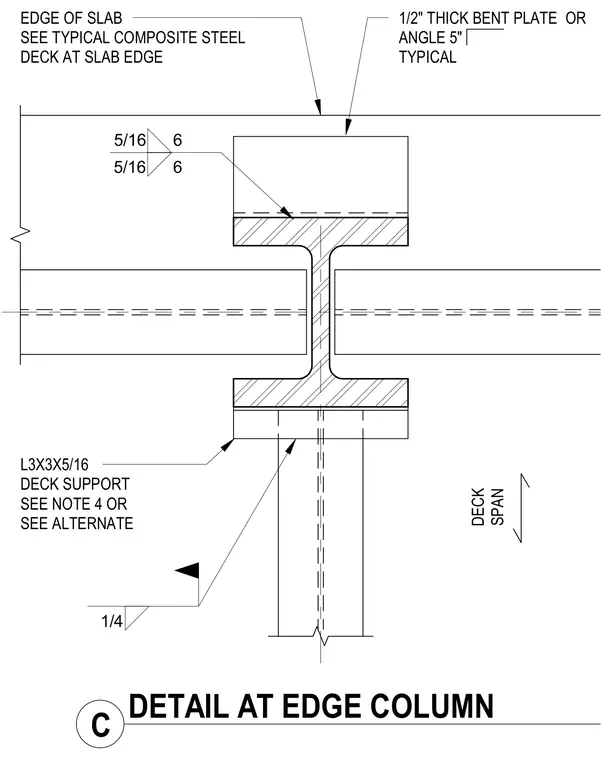

The edge of the composite steel deck bears against a half-inch thick bent plate or angle measuring five inches typical. The structural steel column supports an L3x3x5/16 deck support angle, welded with a quarter-inch fillet weld. A five-sixteenth-inch fillet weld connects the top flange elements at six-inch spacing.
L3X3X5/16 DECK SUPPORT SEE NOTE 4 OR SEE ALTERNATE EDGE OF SLAB SEE TYPICAL COMPOSITE STEEL DECK AT SLAB EDGE DECK SPAN 1/2" THICK BENT PLATE OR ANGLE 5" TYPICAL 1/4 5/16 6 5/16 6 C DETAIL AT EDGE COLUMN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
