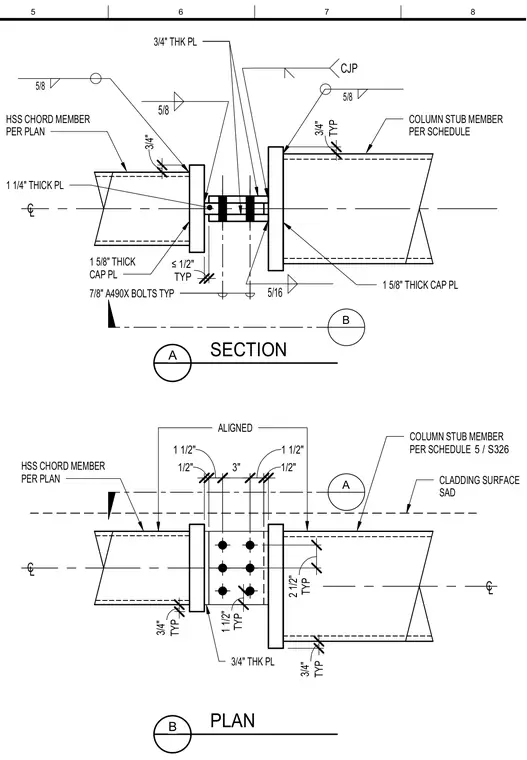

A splice connection ties an HSS chord member to a column stub member per schedule. One-and-five-eighths-inch-thick cap plates weld to the ends of both the HSS chord and the column stub with five-eighths-inch fillet welds and complete joint penetration welds. A one-and-one-quarter-inch-thick plate and three-quarter-inch-thick plates sandwich between the cap plates and fasten with seven-eighths-inch A490X bolts in a configured pattern. The assembly maintains a gap of one-half inch typical between components while aligning with the cladding surface.
SECTION A PLAN B COLUMN STUB MEMBER PER SCHEDULE HSS CHORD MEMBER PER PLAN A COLUMN STUB MEMBER PER SCHEDULE HSS CHORD MEMBER PER PLAN 5/8 TYP 2 1/2" TYP 1 1/2" ALIGNED CLADDING SURFACE SAD C L C L TYP 3/4" TYP 3/4" C L 7/8" A490X BOLTS TYP CJP 5/16 TYP 3/4" 3/4" 5/8 5/8 1 5/8" THICK CAP PL 1 5/8" THICK CAP PL TYP 1/2" 3/4" THK PL 3" 1 1/2" 1/2" 1 1/2" 1/2" 3/4" THK PL B 1 1/4" THICK PL / 5 S326 5 6 7 8
