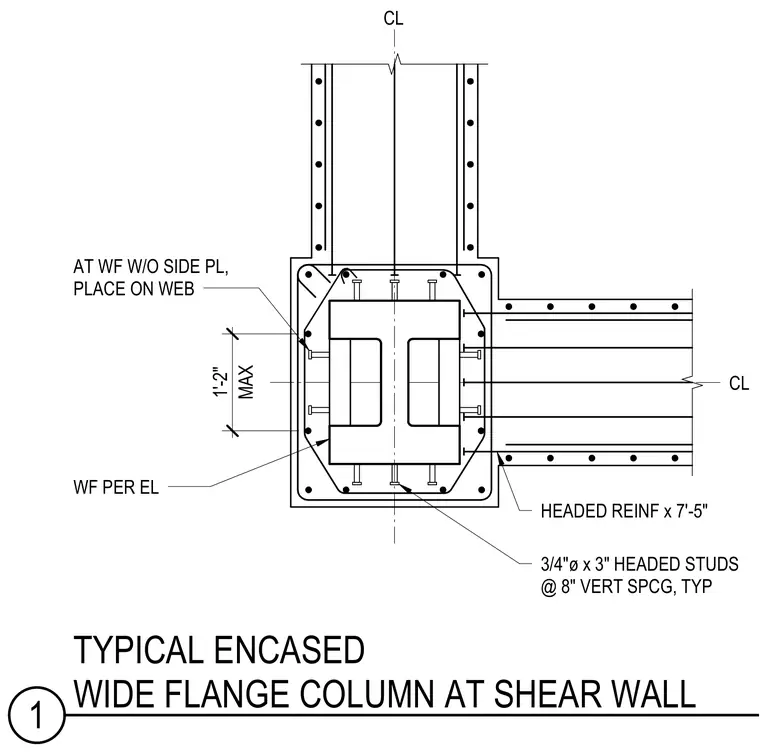

A wide flange steel column is encased within a reinforced concrete shear wall with three-quarter-inch diameter by three-inch headed studs welded to the flanges at eight inches on center vertically. At wide flange columns without side plates, studs are placed on the web with a maximum spacing of one foot two inches. Vertical reinforcing bars and headed reinforcement extend through the wall boundary element. The steel shape size is specified per elevations.
CL CL MAX 1'-2" HEADED REINF x 7'-5" 3/4"ø x 3" HEADED STUDS @ 8" VERT SPCG, TYP WF PER EL AT WF W/O SIDE PL, PLACE ON WEB 1 TYPICAL ENCASED WIDE FLANGE COLUMN AT SHEAR WALL
