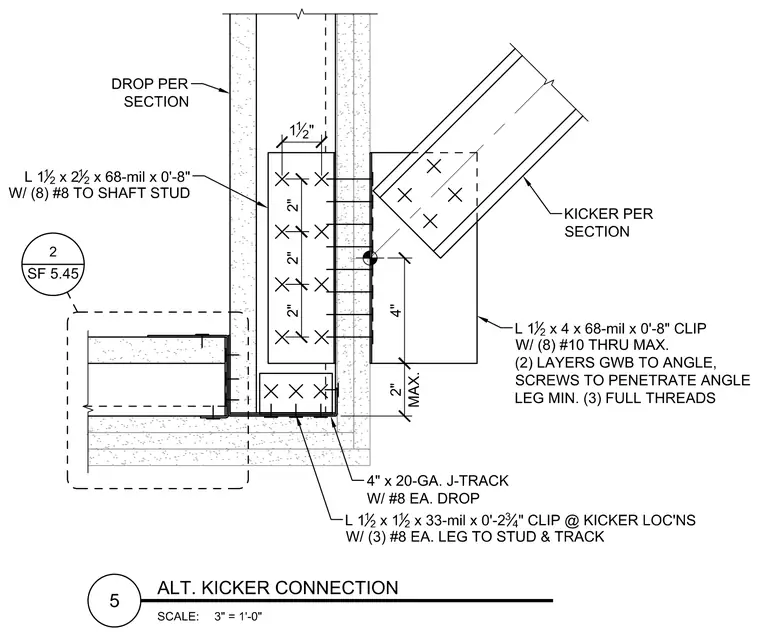

An angled structural kicker per section ties into a cold-formed steel shaft wall assembly via a 1-1/2 inch by 4 inch by 68-mil by 0'-8" clip angle secured with eight number-10 screws through the maximum leg, while two layers of gypsum wallboard attach to the angle with screws penetrating the leg by a minimum of three full threads. A 4-inch by 20-gauge J-track anchors the base with number-8 screws at each drop, reinforced by a 1-1/2 inch by 1-1/2 inch by 33-mil by 0'-2-3/4" clip at kicker locations fastened with three number-8 screws each to the stud and track. The vertical framing incorporates a 1-1/2 inch by 2-1/2 inch by 68-mil by 0'-8" component fastened with eight number-8 screws to the shaft stud.
