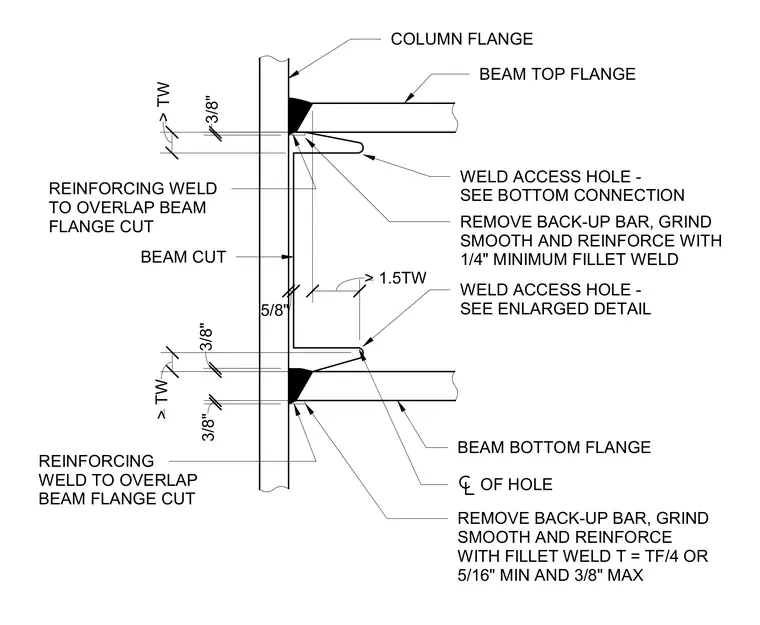

Preparation and reinforcement of weld access holes in structural steel beam-to-column moment connections. The backing bar is removed, and the area is ground smooth before applying a reinforcing fillet weld over the beam flange cut. The fillet weld sizing is specified as a one-quarter-inch minimum at the top flange, and between five-sixteenths-inch minimum and three-eighths-inch maximum at the bottom flange, based on the beam flange thickness. Clearances and dimensions are designated relative to the beam web thickness and flange geometry around the weld access holes.
OF HOLE REINFORCING WELD TO OVERLAP BEAM FLANGE CUT BEAM CUT WELD ACCESS HOLE - SEE ENLARGED DETAIL REINFORCING WELD TO OVERLAP BEAM FLANGE CUT REMOVE BACK-UP BAR, GRIND SMOOTH AND REINFORCE WITH 1/4" MINIMUM FILLET WELD COLUMN FLANGE BEAM TOP FLANGE WELD ACCESS HOLE - SEE BOTTOM CONNECTION > 1.5TW REMOVE BACK-UP BAR, GRIND SMOOTH AND REINFORCE WITH FILLET WELD T = TF/4 OR 5/16" MIN AND 3/8" MAX BEAM BOTTOM FLANGE > TW 3/8" 5/8" 3/8" 3/8" > TW
