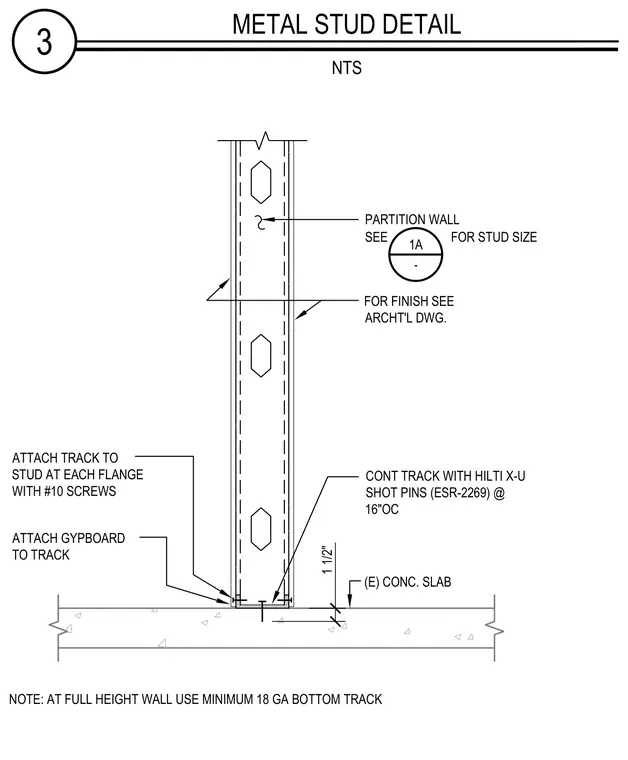

A continuous metal track anchors to an existing concrete slab using Hilti X-U shot pins spaced at sixteen inches on center. The bottom track uses a minimum eighteen gauge for full-height partition walls. Metal studs secure to the continuous track at each flange with number ten screws. Gypsum board attaches directly to the track according to architectural drawings.
SEE FOR STUD SIZE PARTITION WALL 3 METAL STUD DETAIL NTS 1 1/2" 1A - FOR FINISH SEE ARCHT'L DWG. (E) CONC. SLAB ATTACH TRACK TO STUD AT EACH FLANGE WITH #10 SCREWS ATTACH GYPBOARD TO TRACK NOTE: AT FULL HEIGHT WALL USE MINIMUM 18 GA BOTTOM TRACK CONT TRACK WITH HILTI X-U SHOT PINS (ESR-2269) @ 16"OC
