Interior bracing connections tie into an existing concrete beam and double tee joist framing system. The assembly incorporates continuous and intermittent steel angles, including L3x3x1/4 and L4x4x1/4 members, secured with Simpson Set XP adhesive anchors. A continuous one-quarter-inch bent plate and custom plates with three-eighths-inch diameter by four-inch anchors transfer loads into the existing four-inch concrete topping slab and concrete beam. Fillet welds of three-sixteenths-inch size are specified at indicated steel junctions, while notes confirm that interior bracing is not required at similar conditions.

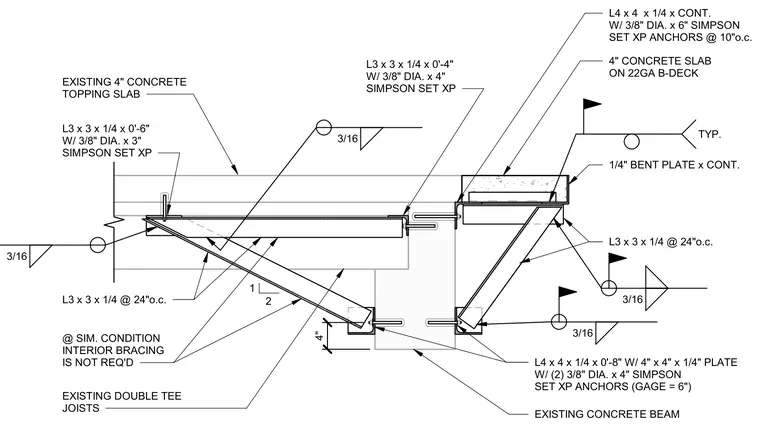

1 2 EXISTING 4" CONCRETE TOPPING SLAB TYP. L3 x 3 x 1/4 x 0'-6" W/ 3/8" DIA. x 3" SIMPSON SET XP L3 x 3 x 1/4 @ 24"o.c. EXISTING DOUBLE TEE JOISTS @ SIM. CONDITION INTERIOR BRACING IS NOT REQ'D EXISTING CONCRETE BEAM 4" CONCRETE SLAB ON 22GA B-DECK L4 x 4 x 1/4 x CONT. W/ 3/8" DIA. x 6" SIMPSON SET XP ANCHORS @ 10"o.c. 1/4" BENT PLATE x CONT. L3 x 3 x 1/4 @ 24"o.c. L4 x 4 x 1/4 x 0'-8" W/ 4" x 4" x 1/4" PLATE W/ (2) 3/8" DIA. x 4" SIMPSON SET XP ANCHORS (GAGE = 6") L3 x 3 x 1/4 x 0'-4" W/ 3/8" DIA. x 4" SIMPSON SET XP 3/16 3/16 4" 3/16 3/16
