Structural · S-PXWRX

Equipment Concrete Housekeeping Pad Detail

Materials

Concrete Reinforced Concrete

Elements

Floors / Slabs Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

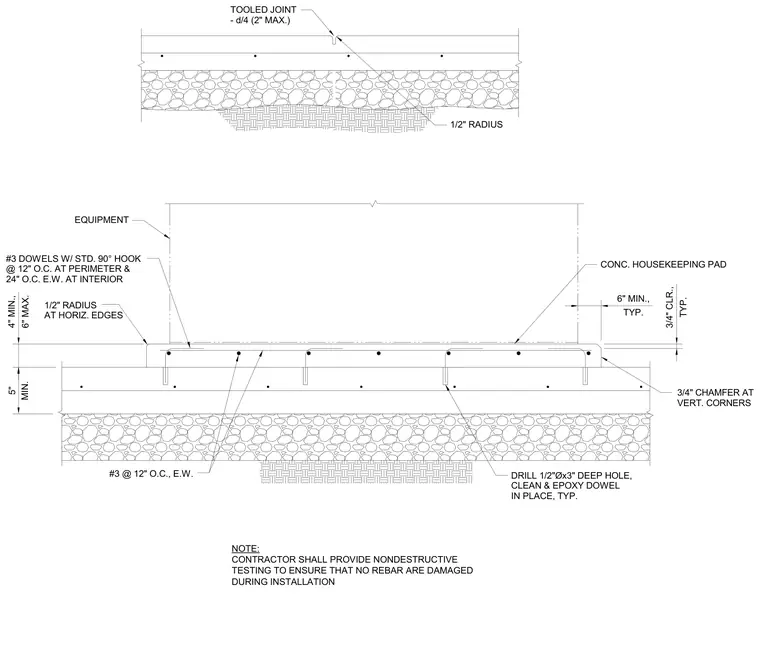

A reinforced concrete housekeeping pad rests atop a structural slab with a minimum thickness of five inches. The pad features number three dowels with standard ninety-degree hooks spaced at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior, alongside number three reinforcing bars at twelve inches on center each way. Half-inch diameter by three-inch deep holes are drilled, cleaned, and epoxied to anchor dowels in place. The pad includes a three-quarter-inch chamfer at vertical corners and a half-inch radius at horizontal edges. A tooled control joint is cut into the top surface to a depth of one-quarter of the slab thickness up to a maximum of two inches. A note specifies that the contractor shall provide nondestructive testing to ensure that no rebar are damaged during installation.
