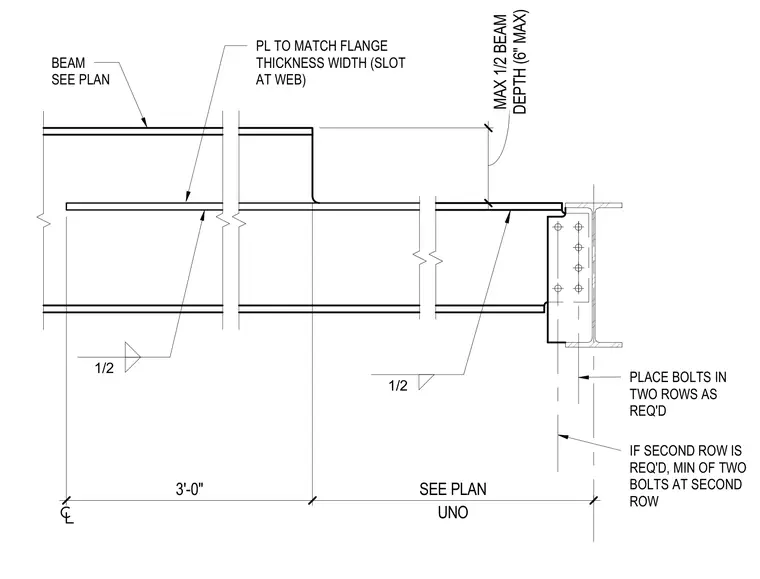

A steel beam features a top flange notch with a depth limited to a maximum of half the beam depth. An internal reinforcing plate matches the flange thickness and width, extending into a slot cut into the beam web. One-half inch fillet welds secure the plate within the web slot and along the web assembly. A bolted shear tab connection frames the beam end to the supporting column, with provision for a second row of bolts when required by design loads.
IF SECOND ROW IS REQ'D, MIN OF TWO BOLTS AT SECOND ROW PLACE BOLTS IN TWO ROWS AS REQ'D BEAM SEE PLAN PL TO MATCH FLANGE THICKNESS WIDTH (SLOT AT WEB) DEPTH (6" MAX) MAX 1/2 BEAM 3'-0" UNO SEE PLAN 1/2 1/2
