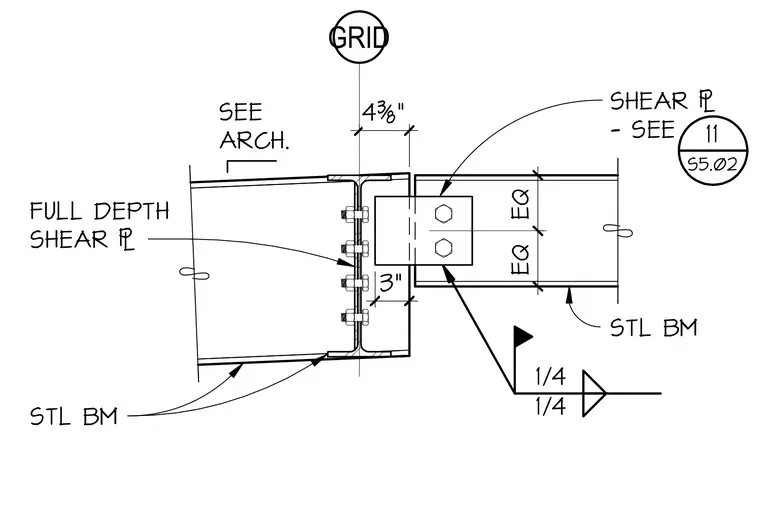

A steel beam frames into the web of a supporting steel beam using a full depth shear plate. The connection utilizes a bolted shear plate welded to the incoming beam web with a quarter-inch fillet weld and bolted to the supporting beam web. The supporting beam is aligned with a structural grid line and coordinated with architectural requirements.
GRID 3" 47" EQ EQ 1/4 1/4 STL BM SHEAR ( - SEE 11 S5.02 SEE ARCH. FULL DEPTH SHEAR ( STL BM
