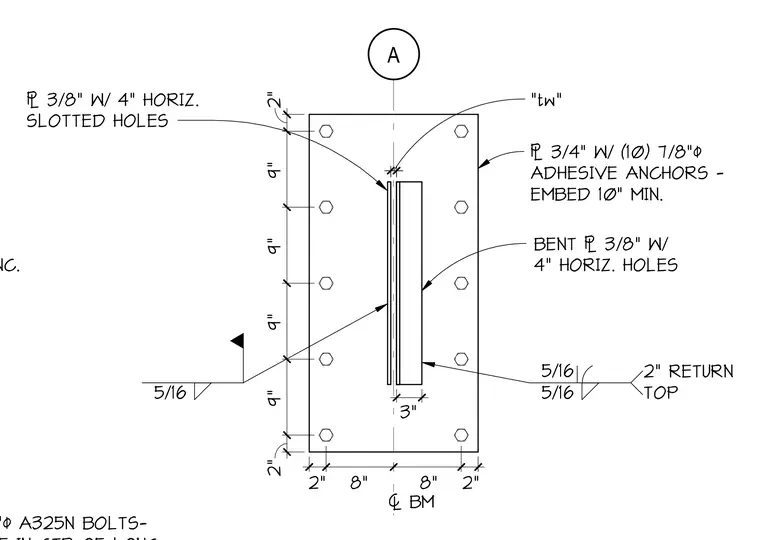

A three-quarter-inch thick steel plate is secured to existing concrete using ten seven-eighth-inch diameter adhesive anchors with a minimum ten-inch embedment. A three-eighth-inch bent plate with four-inch horizontal slotted holes is welded to the assembly using five-sixteenth-inch fillet welds with a two-inch return at the top. The assembly accommodates horizontal movement through slotted holes and seven-eighth-inch A325N bolts.
(7) 7/8"/ A325N BOLTS- (E) CONC. A 2" 8" 8" 2" 2" 9" 9" 9" 9" 2" 5/8" "tw" 3" BM 3/4" W/ (10) 7/8"/ ADHESIVE ANCHORS - EMBED 10" MIN. BENT 3/8" W/ 4" HORIZ. HOLES 5/16 5/16 2" RETURN TOP 3/8" W/ 4" HORIZ. SLOTTED HOLES 5/16
