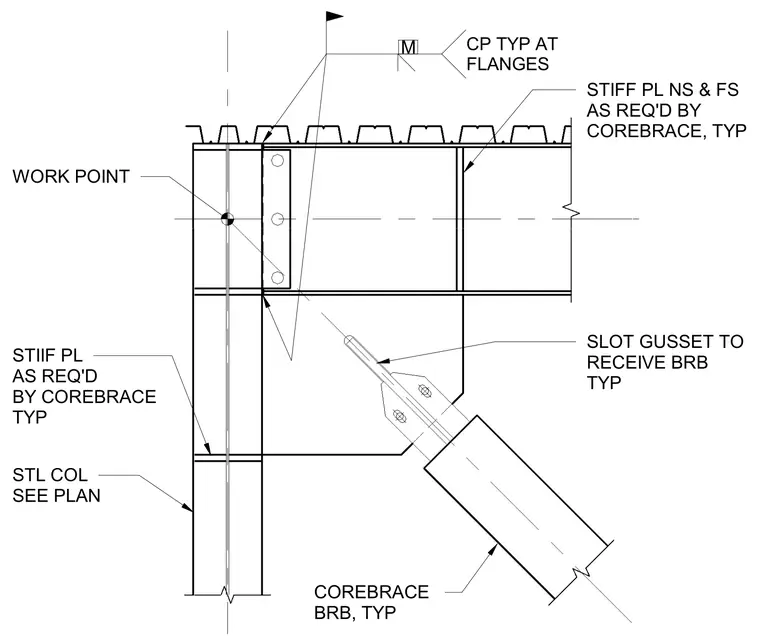

A buckling-restrained brace connects to a steel column and beam assembly through a slotted gusset plate at a roof level. Stiffener plates are welded to the near side and far side of the beam and column flanges as required by the corebrace manufacturer. A connection plate is located at the beam flanges near the column intersection. The brace aligns with a designated work point at the centerline intersection of the structural framing members.
CP TYP AT FLANGES WORK POINT STIIF PL AS REQ'D BY COREBRACE TYP STL COL SEE PLAN COREBRACE BRB, TYP SLOT GUSSET TO RECEIVE BRB TYP STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP M
